AWS VPC & Networking

Overview

A foundational networking service in AWS is the Amazon Virtual Private Cloud (Amazon VPC). It is a software-defined virtual private network. It is a service that you use to create secure private networks in AWS to host your applications and data. Your private services will run from this Amazon VPC. You can also connect your Amazon VPCs from your AWS private network to your on premises, creating a hybrid environment.

Within a Amazon Virtual Private Cloud (Amazon VPC), you can launch AWS resources in a logically isolated virtual network that you’ve defined. This virtual network closely resembles a traditional network with the benefits of the scalable infrastructure of AWS.

Regions

• AWS has Regions all around the world
• Names can be us-east-1, eu-west-3…
• A region is a cluster of data centers
• Most AWS services are region-scope
• 👉 AWS Global Infrastructure

Availability Zones

• Each region has many availability zones. Example:
  • ap-southeast-2a
  • ap-southeast-2b
  • ap-southeast-2c
• Each availability zone (AZ) is one or more discrete data centers with redundant power, networking, and connectivity
• They’re separate from each other, so that they’re isolated from disasters
• They’re connected with high bandwidth, ultra-low latency networking

Availability Zones (AZs) Aren’t Globally Consistent Across Accounts

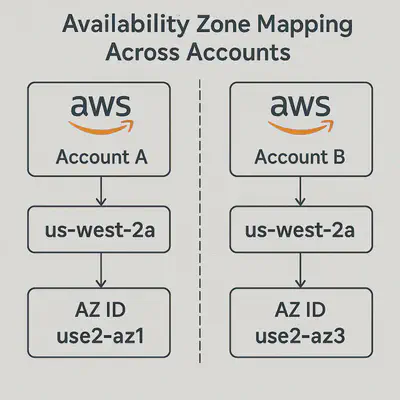

AZ Names Are Mapped Per Account:

• AWS uses logical names like us-west-2a, us-west-2b, etc. for Availability Zones.
• These names are not globally fixed — they’re mapped differently for each AWS account.
• So, us-west-2a in Account A might physically correspond to a different data center than us-west-2a in Account B

🧠 Why AWS Does This?

• Load balancing & fault isolation: AWS spreads customers across AZs to avoid overloading any single data center.
• Security & abstraction: It prevents users from inferring physical infrastructure layout.
• Flexibility: AWS can reassign logical AZ names without disrupting customer configurations.

Even though both accounts use us-west-2a, they’re actually pointing to different physical zones.

Edge Locations

• Amazon has 400+ Points of Presence (400+ Edge Locations & 10+ Regional Caches) in 90+ cities across 40+ countries
• Content is delivered to end users with lower latency

VPC

Private network to deploy your resources (regional resource).

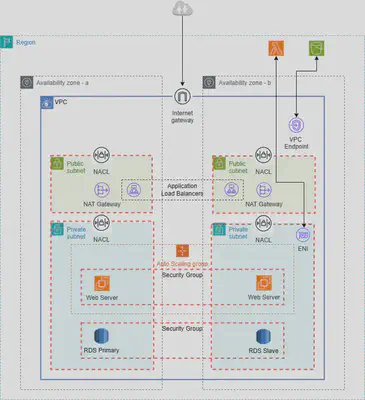

Here’s how to create a VPC that you can use for a two-tier architecture in a production environment. To improve resiliency, you deploy the servers in two Availability Zones.

IPv4 and IPv6

IPv4 and IPv6 are the two primary versions of the Internet Protocol used to identify devices on a network. AWS supports both IPv4 and IPv6, but IPv4 cannot be disabled for a VPC, ensuring compatibility with existing infrastructure.

IPv4

• IPv4 is widely used to identify devices on a network using numerical addresses.
• Address Space: IPv4 provides about 4.3 billion unique addresses (2^32), which are rapidly being exhausted.
• Format: IPv4 addresses are written in dotted decimal notation — four octets separated by dots (e.g., 192.168.0.1).
• Address Types: Includes public, private, loopback, and broadcast addresses. Private ranges include 10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16.
• Subnetting: CIDR notation (e.g., /24) is used to define network boundaries and calculate usable host addresses.

IPv6

• IPv6 is the successor to IPv4, designed to overcome address exhaustion and support the growing number of internet-connected devices.
• Address Space: IPv6 provides approximately 3.4 × 10^38 unique IP addresses — enough to assign trillions per person on Earth.
• Format: An IPv6 address consists of 8 groups of 4 hexadecimal digits, separated by colons (e.g., 2001:db8:3333:4444:5555:6666:7777:8888).
• Zero Compression: Consecutive groups of zeros can be compressed using :: (e.g., 2001:db8::1234:5678).
• AWS Note: All IPv6 addresses in AWS are public and Internet-routable — there are no private IPv6 ranges like in IPv4.

CIDR Blocks

• Classless Inter-Domain Routing – a method for allocating IP addresses used in Security Groups rules and AWS networking in general
• Formula: The number of IP addresses in a CIDR block is 2^(32 - prefix length) for IPv4.
• Prefix Length: CIDR notation (e.g., /26) specifies how many bits are reserved for the network. The rest are for host addresses.
• Usable Hosts: Subtract 2 from the total to account for the network address and broadcast address, which are not assignable.
• Example:
  • For 10.0.0.0/26, 2^6 = 64 total IPs → 62 usable host addresses.
  • WW.XX.YY.ZZ/32 => one IP
  • 0.0.0.0/0 => all IPs

Subnets

Subnets allow you to partition your network inside your VPC (Availability Zone resource)

• A public subnet is a subnet that is accessible from the internet
• A private subnet is a subnet that is not accessible from the internet
• To define access to the internet and between subnets, we use Route Tables

Route Tables

• VPC has an implicit router, and you use route tables to control where network traffic is directed.
• Each subnet in your VPC must be associated with a route table, which controls the routing for the subnet.
• A private subnet has a route defined to the NAT Gateway for outbound traffic.
• A public subnet has a route defined to the Internet Gateway for outbound traffic.
• A subnet can only be associated with one route table at a time, but you can associate multiple subnets with the same subnet route table.

Internet Gateway

• Internet Gateways helps our VPC instances connect with the internet
• Public Subnets have a route to the internet gateway

NAT Instances

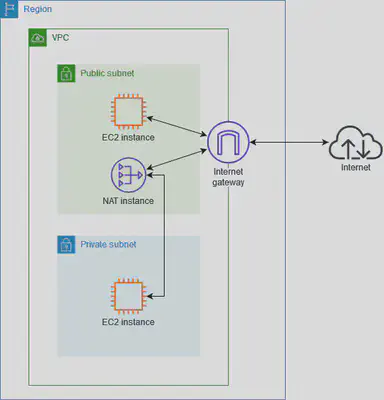

• NAT Instance (self-managed) provides network address translation (NAT). You can use a NAT instance to allow resources in a private subnet to communicate with destinations outside the virtual private cloud (VPC), such as the internet or an on-premises network. The resources in the private subnet can initiate outbound IPv4 traffic to the internet, but they can’t receive inbound traffic initiated on the internet.

• NAT Instances are just EC2 instances running custom NAT software (often Linux with iptables or nftables), so you can configure them however you like — including static port forwarding rules.
• Full OS-Level Control: You can modify routing tables, firewall rules, and install additional software to handle complex traffic flows.
• Security Groups: NAT Instances support security groups, allowing fine-grained control over inbound/outbound traffic.

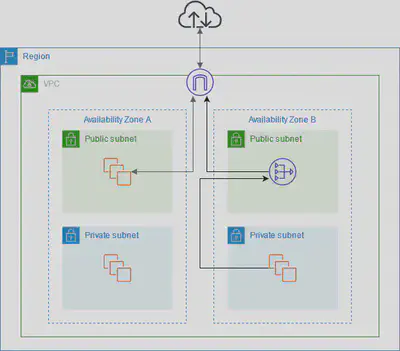

NAT Gateway

• NAT Gateways (AWS-managed) allows your instances in your Private Subnets to access the internet while remaining private

• Public NAT Gateway:

  • Placed in a public subnet.
  • Requires an Elastic IP.
  • Routes traffic to the internet via an Internet Gateway (IGW).
  • Can also route to other VPCs/on-prem via Transit Gateway or Virtual Private Gateway.

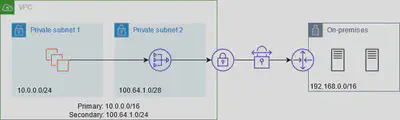

• Private NAT Gateway:

  • Placed in a private subnet.
  • No Elastic IP.
  • Routes only to other VPCs/on-prem via Transit Gateway or Virtual Private Gateway.
  • Cannot route to the internet — IGW drops such traffic.



🧠 Think of a NAT Instance like a DIY router — you can tinker with its internals. A NAT Gateway is more like a sealed appliance — optimized for speed and reliability, but not customizable.

Network Access Control List (NACL)

• A firewall which controls traffic from and to a subnet
• Can have ALLOW and DENY rules
• Are attached at the Subnet level
• Rules only include IP addresses
• Rules in the NACL are evaluated in order, starting with the lowest numbered rule. If traffic matches a rule, the rule is applied and no further rules are evaluated.
• NACLs are stateless, ingress does not equal egress. Traffic that matches a rule for one direction will not be automatically allowed in the opposite direction. You would have to add an outbound rule.

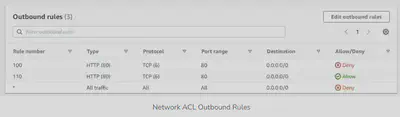

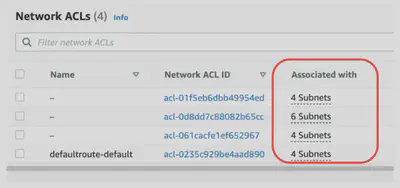

Here’s an example of a NACL Outbound rule:

Security Groups

• A firewall that controls traffic to and from an ENI / an EC2 Instance

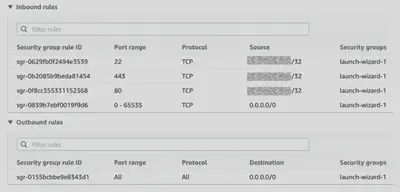

• You can specify the source, port range, and protocol for each inbound rule.
• You can also specify the destination, port range, and protocol for each outbound rule.
• Can have only ALLOW rules. Deny is by default i.e anything not permitted is denied.
• Rules include IP addresses and other security groups
• All rules are evaluated to decide to allow or deny traffic. The most permissive rule is applied.
• Security Groups are stateful, ingress equals egress. Traffic that matches a rule for one direction will also be allowed automatically in the opposite direction.

There are several key areas to compare between Security Groups and NACLs:

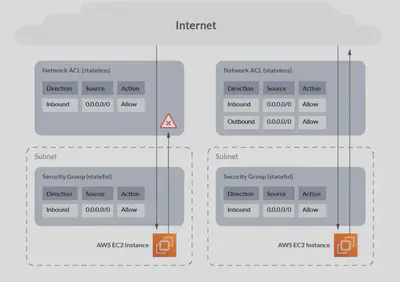

To visualize the stateful nature of AWS Security Groups vs the stateless nature of network ACLs here’s a diagram:

Elastic Network Interface (ENI)

An elastic network interface is a logical networking component in a VPC that represents a virtual network card (NIC). It can include the following attributes:

• A primary private IPv4 address from the IPv4 address range of your VPC
• A primary IPv6 address from the IPv6 address range of your VPC
• One or more secondary private IPv4 addresses from the IPv4 address range of your VPC
• One Elastic IP address (IPv4) per private IPv4 address
• One public IPv4 address
• One or more IPv6 addresses
• One or more security groups
• A MAC address
• A source/destination check flag
• A description

Some of the key features of an ENI to remember:

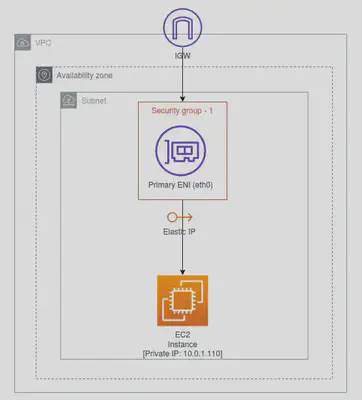

1. Each instance in your VPC has a default network interface (the primary network interface — eth0) that assigns a private IPv4 address from the IPv4 address range of your VPC.
2. You cannot detach the default (primary) network interface from an instance.

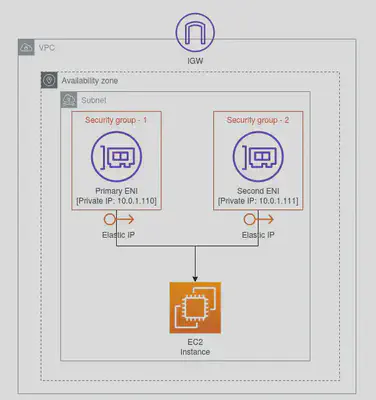

3. You can create an attach an additional/ secondary ENIs to an instance in your VPC. However, these ENIs should be created within the same availability zone of the EC2 instance that you are trying to attach your secondary ENI. The number of network instances you can attach varies by instance type.
4. A Security Group is attached to an ENI not an EC2 instance. With this approach you can have multiple routes to the same EC2 instance with different security configurations.
5. You can create a network interface, attach it to an instance, detach it from an instance and attach it to another instance within the same Availability Zone.
6. A network interface’s attributes follow it as it is attached or detached from an instance and reattached to another instance. You could use this approach to change the publicIP of your instance if need be.

VPC Endpoint

If we attempt to access a S3 bucket ( or any other global AWS service) from within a private subnet in a VPC, we could not do that directly since there’s no internet connectivity. We could solve this in a naive way by going via:

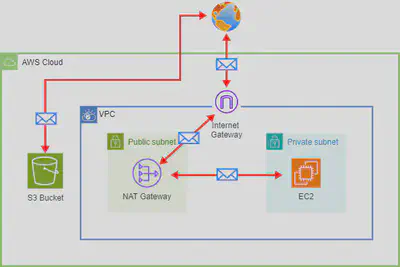

EC2 ➡️ NAT Gateway ➡️ Internet Gateway ➡️ 🌎 ➡️ S3 and then the same way back.

It almost seems like going from A ➡️ B via a detour.

Issues with this approach:

• Expensive: Nat Gateways are 💰 and charged per hour.
• Security: Traffic is going out of the VPC and AWS Cloud and coming back.

This is the problem the VPC Endpoint would tend to solve.

A VPC endpoint is a virtual scalable networking component you create in a VPC and use as a private entry point to supported AWS services and third-party applications. Currently, two types of VPC endpoints can be used to connect to Amazon S3: Interface VPC endpoint and Gateway VPC endpoint. In both scenarios, the communications between the service consumer and the service provider never gets out of the AWS network.

• Gateway Endpoint
• Interface Endpoint

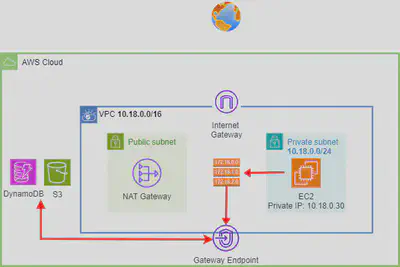

• The gateway endpoint is created at the VPC level.
• We need to attach an endpoint policy to the Gateway endpoint that allow access to the S3 service and also specify a route in the route table in subnet 10.18.0.0 so the EC2 instance can find a path to the S3 bucket.
• VPC Endpoint policy and Resource-based policies can be used for fine-grained access control i.e which bucket, read/write access…
• Only supports S3 and DynamoDB.
• The biggest benefit for me is that it is 🆓. Your S3 or DynamoDB Traffic are not billed if Gateway Endpoint is used.

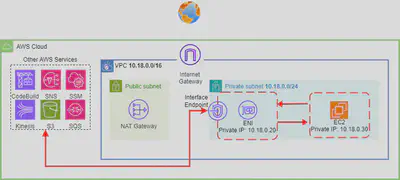

• When you create a Interface Endpoint, it creates an ENI in your private subnet and assign it a private IP address from the subnet address range.
• VPC Interface endpoints enable connectivity to services powered by AWS PrivateLink. Services include AWS services like CloudTrail, CloudWatch, etc., services hosted by other AWS customers and partners in their own VPCs (referred to as Endpoint Services), and supported AWS Marketplace partner services.
• Interface Endpoints can be used to create custom applications in VPC and configure them as an AWS PrivateLink-powered service (referred to as an endpoint service) exposed through a Network Load Balancer.
• You would need to associate a Security Group around a Interface Endpoint. Also the EC2 Instance would have a Security Group associated. Then all we got to do is:
  • On the VPC Endpoint Security Group Allow INBOUND from EC2 Security Group.
  • On the EC2 Security Group Allow OUTBOUND to the VPC Endpoint Security Group
• Interface Endpoints only allow traffic from VPC resources to the endpoints and not vice versa.
• PrivateLink endpoints can be accessed across both intra- and inter-region VPC peering connections, Direct Connect, and VPN connections.
• VPC Interface Endpoints, by default, have an address like vpce-svc-01234567890abcdef.us-east-1.vpce.amazonaws.com which needs application changes to point to the service.
• Majority of AWS services can be privately connected through Interface Endpoint.
• You are billed🧾 for hourly usage and data processing charges.

S3 VPC Endpoints Strategy

S3 is accessible with both Gateway Endpoints and Interface Endpoints. Here’s a mind map to help you decide based on your architecture needs:

VPC Peering

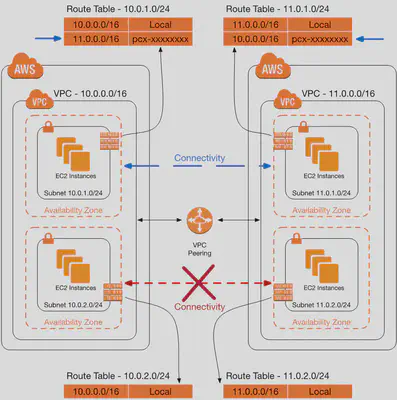

• Privately connect two VPCs using AWS’ network
• Make them behave as if they were in the same network
• Must not have overlapping CIDRs
• VPC Peering connection is NOT transitive (must be established for each VPC that need to communicate with one another)
• You must update route tables in VPC’s subnets each to ensure EC2 instances can communicate with each other
• You can create VPC Peering connection between VPCs in different AWS accounts/regions

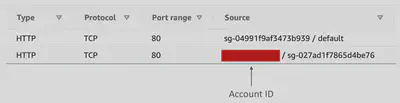

• You can reference a security group in a peered VPC (works cross accounts – same region)

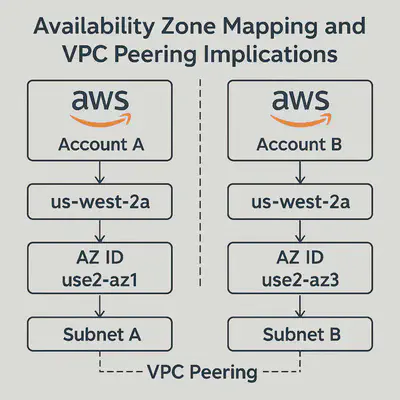

🛠️ Cross-Account VPC Peering

If you need to ensure consistent AZ usage across accounts (e.g., for multi-account VPC peering or DR setups):

• Use AZ IDs instead of names
• Run:

  aws ec2 describe-availability-zones --region us-west-2 --all-availability-zones


• Look for the ZoneId field (e.g., use2-az1, use2-az2)
• Map AZ names to AZ IDs manually
• Create a shared mapping table across accounts.
• Use AZ IDs to align resources (e.g., ensure both accounts use use2-az1).

VPC Flow Logs

Site to Site VPN

Direct Connect

Direct Connect Gateway

Transit Gateway

Futher Read

• AWS Whitepaper - Connectivity models
• How NAT Gateway works
• How NAT Instance works
